3-Axles Stakes Flatbed Semi Trailer On Sale :
The Starway 3 axles stake-type flatbed semi-trailer is a specific cargo transport vehicle. Its characteristic is that a stake structure that can be inserted into the cargo box is installed at the bottom of the flatbed to fix the cargo box and prevent the cargo from moving during transportation. This type of vehicle is usually used to load bulk cargo, such as wood, steel, etc., to facilitate the fixation and transportation of cargo.

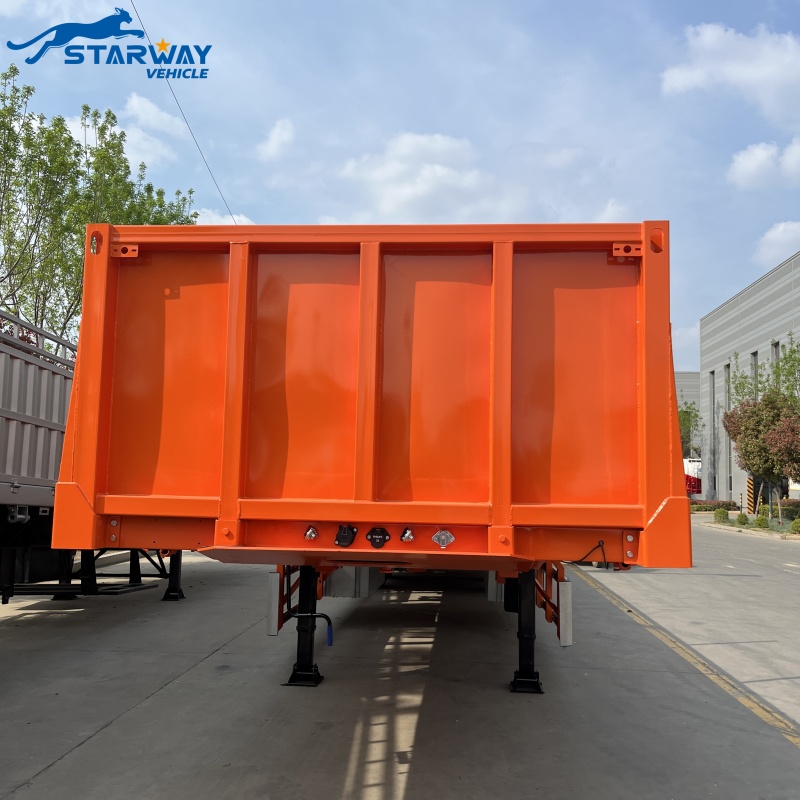

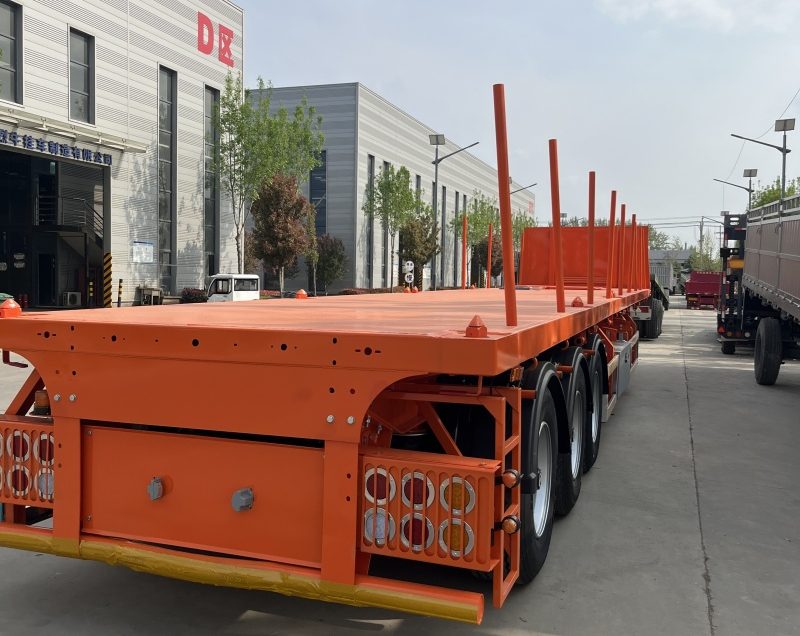

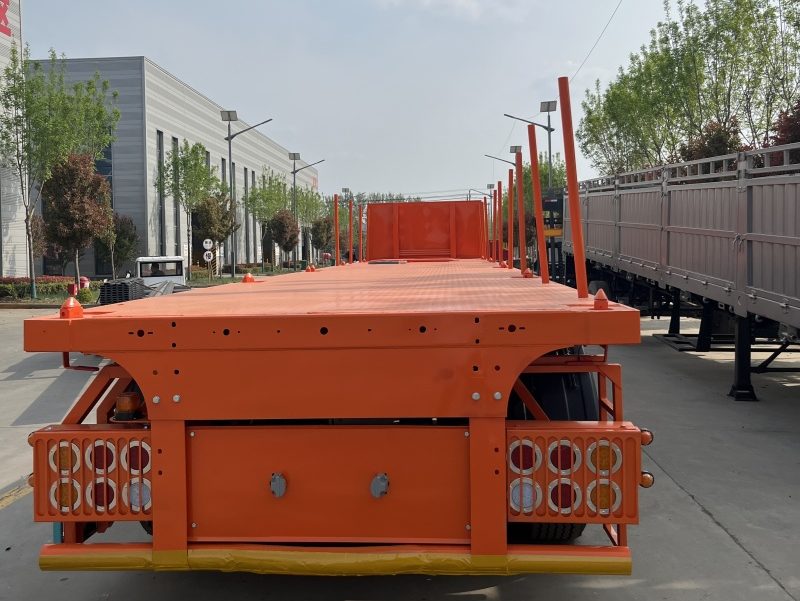

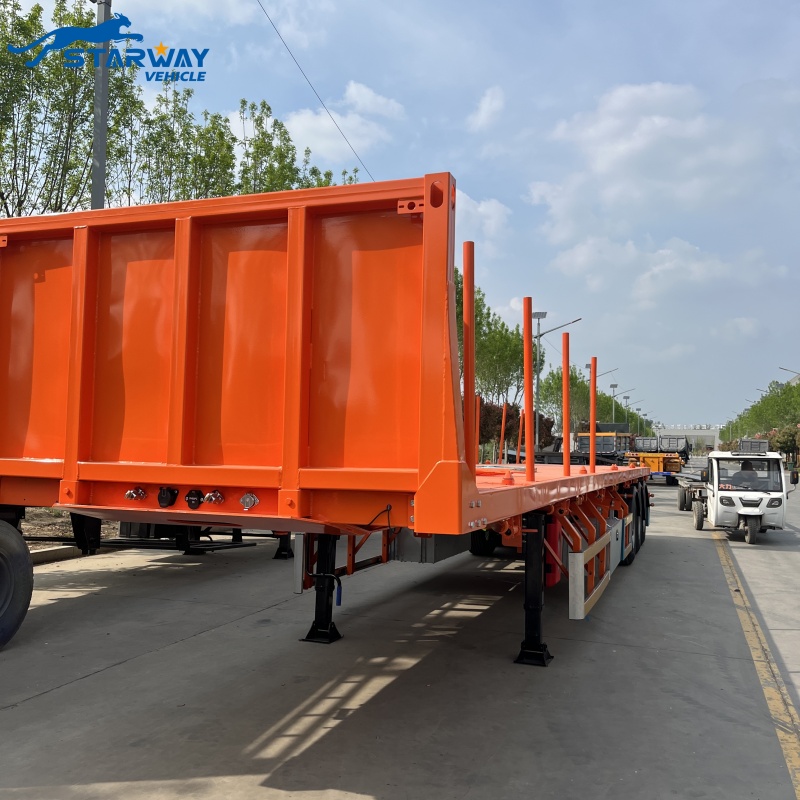

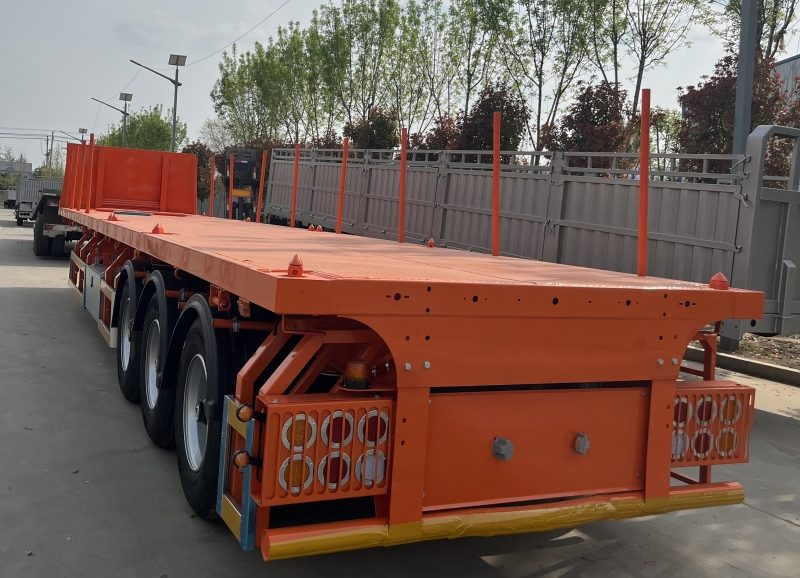

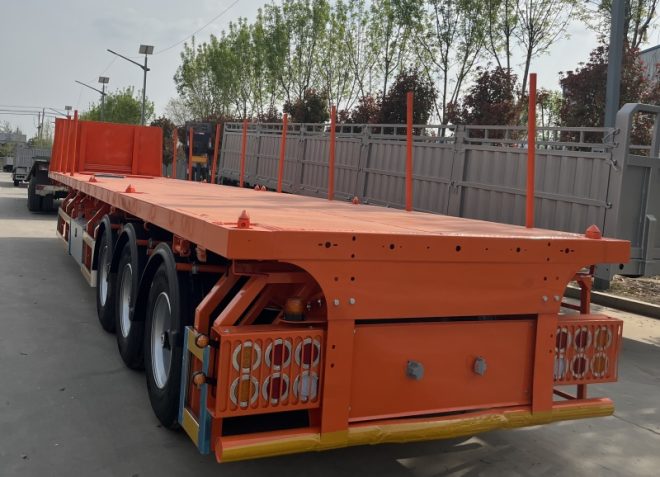

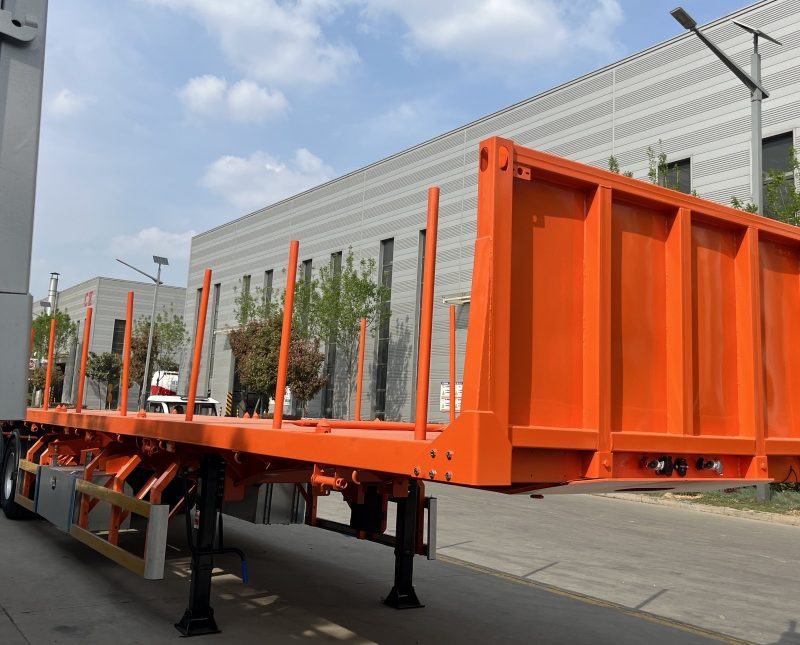

Starway Vehicle 3 Axles Stakes Flatbed Semi Trailer
Starway Vehicle 3 Axles Stakes Flatbed Semi Trailer
Starway Vehicle 3 Axles Stakes Flatbed Semi Trailer
The specification of STARWAY VEHICLE standard 3 axles stakes flatbed semi trailer :
Brand : Starway Vehicle
Axle : 2 Axles/3 Axles/*13/16Ton Starway Vehicle/FUWA/BPW
Application : 1*40ft/2*20ft Container or cargo loading
Loading Capacity : 30-80 Tons
Gooseneck Type : Yes
Tandem Type : Yes
Main Beam Material : Q345/T700
Upper Plate Thickness : 16mm
Middle Plate Thickness : 10mm
Lower Plate Thickness : 18mm
Height : 500mm
Platform Thickness : 3mm
Dimension (L*W*H) : 12400*2500*1570mm
Tire : 12R22.5(8/12Pieces）Linglong/Triangle/Double-Coin/Bridgestone/Other Brand
Rim : 9.00*22.5(8/12 Pieces) Steel/Aluminum
Leaf Spring : 90mm*13mm*10/90mm*16mm*10 PCS
KingPin : 50#(2’’)/90#(3.5) JOST/Other Brand
Landing Gear : 28 Ton Two Speed,JOST/Other Brand
Twist Lock : 12Sets
Vehicle Painting : Electrophoresis Painting
