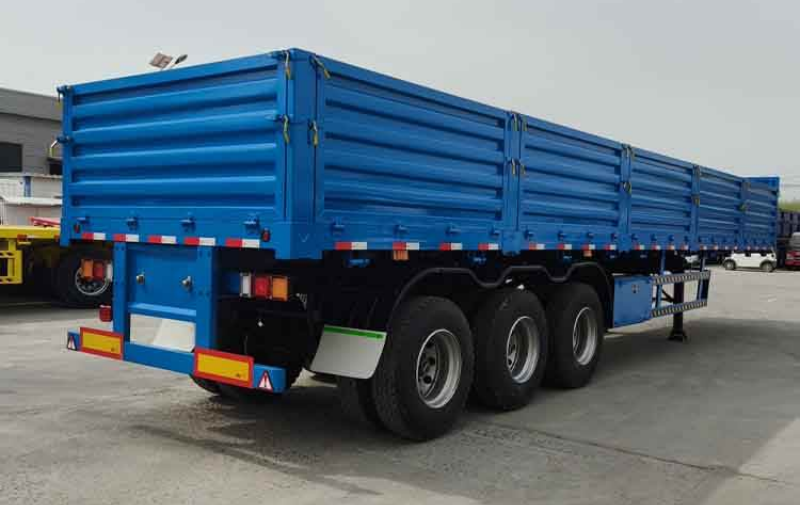

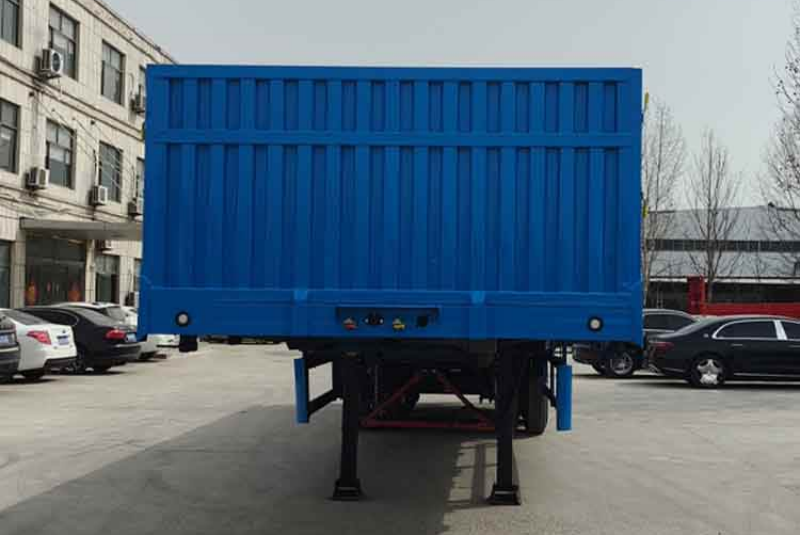

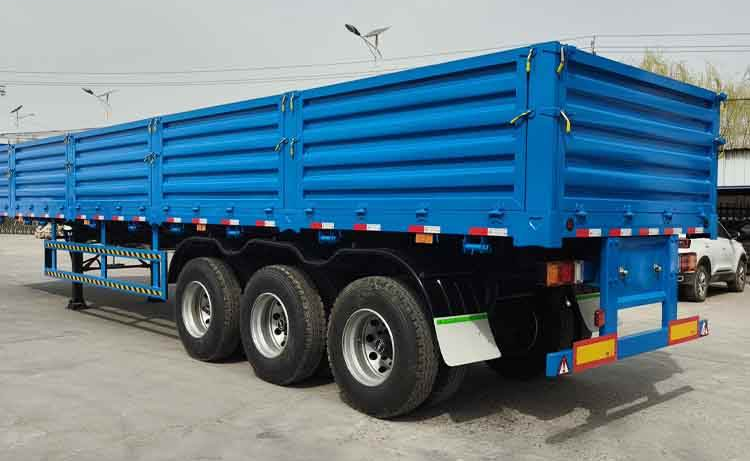

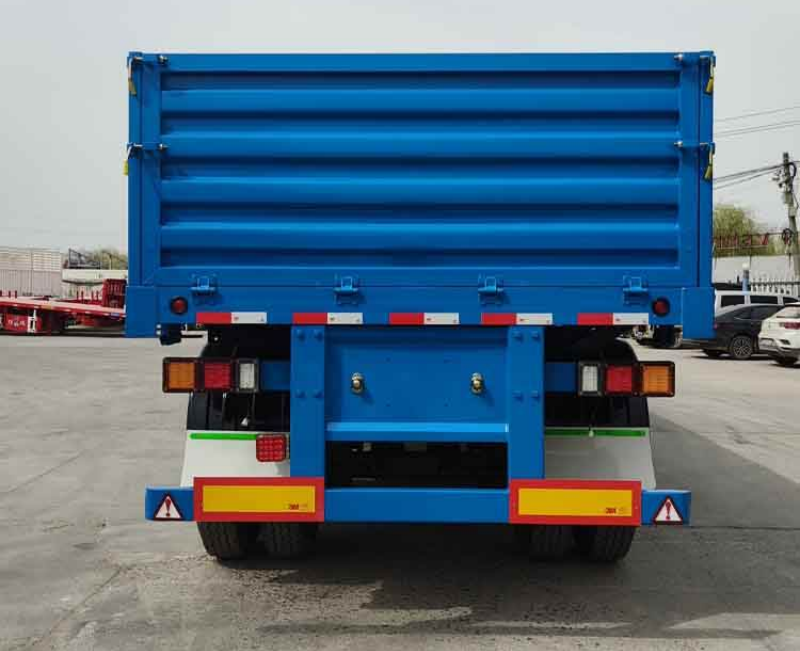

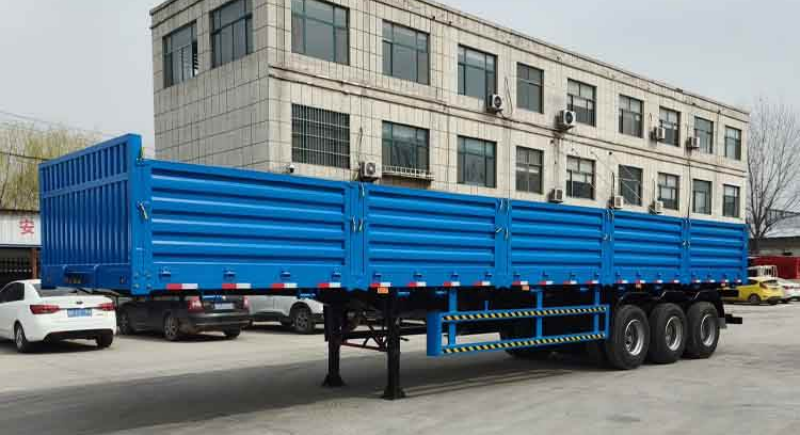

When it comes to transporting bulk cargo and containers, fleet owners require trailers that combine heavy-duty capacity with practical design. The Starway side wall semi trailer has been engineered to address exactly these needs. With a robust 60-ton loading capacity and side walls that range between 600mm and 800mm, this trailer is a versatile solution that guarantees safe and efficient transportation.
Durability is one of the defining qualities of Starway vehicles. Each side wall semi trailer is manufactured with high-strength steel material. This choice not only increases resistance against bending and wear but also extends the trailer’s lifespan under heavy operational pressure. In the demanding transport industry, equipment longevity translates directly into reduced maintenance costs and higher profitability for logistics operators.
The engineering quality of the trailer is demonstrated through its main beam construction. Instead of using conventional welding methods, Starway employs automatic arc-submerging welding. This ensures the main beam is continuous, with no weak points or joints. The result is a beam that can endure higher stress, making the trailer more suitable for long-term and high-frequency use.
Safety has always been a top priority for Starway. To minimize risks on the road, the trailer integrates globally recognized components. The German WABCO braking system, for instance, provides precise and efficient braking, shortening stopping distances even under full loads. This significantly reduces accident risks, ensuring both cargo and driver are protected.
Another important aspect of the Starway side wall trailer is the design of its floor and frame. The checkerplate surface helps stabilize cargo during transit, particularly bagged products, agricultural goods, or construction materials. The inclusion of nine cross beams, spaced at less than 45cm, ensures exceptional load distribution and prevents deformation under pressure. Reinforced side beams and a strengthened gooseneck bottom plate provide additional structural stability.
Practicality is also central to this trailer’s design. Operators can load a 40ft container or two 20ft containers without needing to remove the side walls or frame. This feature saves time, reduces handling requirements, and improves overall operational efficiency. Whether transporting steel products, agricultural commodities, or containerized cargo, the trailer adapts quickly to multiple use cases.
Specifications of side wall semi trailer
Dimension : 12500*2500*2800mm
Payload : 60ton
Tare weight : 8500kg
Axle :2/3/4 pcs,13T/16T ,BPW/FUWA/Starway
Suspension : Mechanical suspension / air suspension
Tire : 12R22.5 12units
Wheel rim :9.0
Kingpin : 2”/3.5”
Main beam : beam height :500mm,upper plate 14mm,lower plate 16mm,middle plate 8mm
Leaf spring : 90*13*10 layer
Landing gear : 28Ton
Platform : 3/4mm
Twist locks : 12pcs
Toolbox : 1 standard
