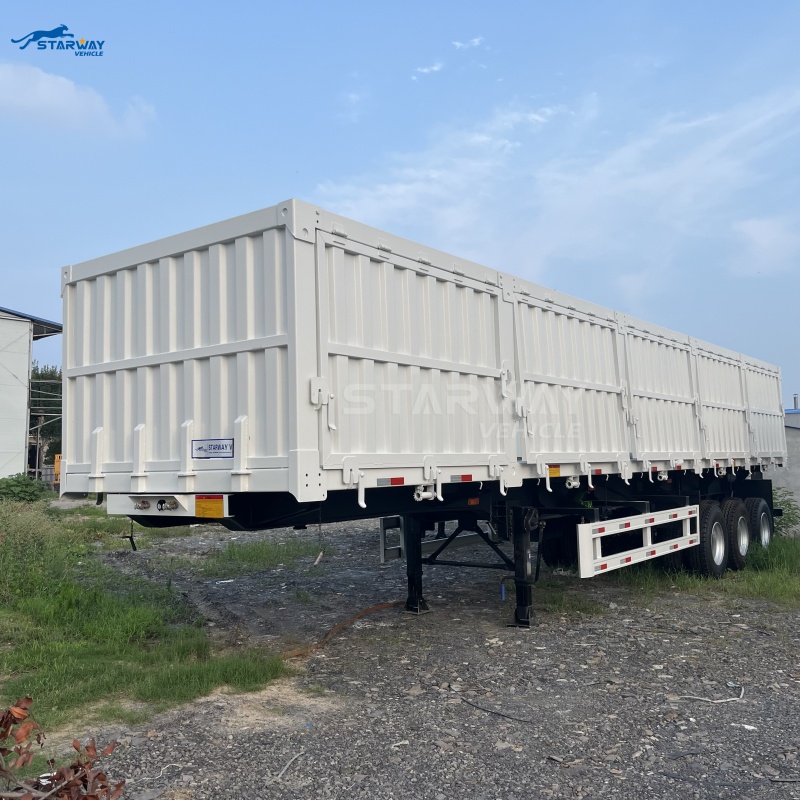

What’s a sidewall semi trailer ?

 Sidewall Semi-Trailer Is A Modern Solution for Efficient Bulk Transportation
A sidewall semi-trailer is a specialized type of semi-trailer designed for the efficient transportation and dumping of bulk materials. This innovative design combines the advantages of traditional dump trucks and semi-trailers, offering a more efficient and cost-effective solution for various industries.

Advantages and features of starway sidewall semi-trailer :

1、Enhanced Load Capacity: Sidewall semi-trailers can carry significantly larger loads compared to traditional dump trucks.

2、Reduced Transportation Costs: By optimizing load capacity and fuel efficiency, these trailers help lower overall transportation costs.

3、Self-Unloading Function: The hydraulically operated sidewalls allow for quick and efficient dumping of materials, reducing labor costs and improving productivity.

4、Long-Distance Transportation: Suitable for long-haul transportation due to their higher load capacity and improved fuel efficiency.

Common usage scenarios of sidewall semi trailer:

• Construction Industry: Transporting construction materials like sand, gravel, and soil.
• Mining Industry: Hauling mined materials, such as coal, ore, and minerals.
• Agriculture: Transporting bulk agricultural products, such as grain and fertilizer.

Safety Guidelines for Unloading Sidewall Semi-Trailers

To ensure the safe and efficient unloading of sidewall semi-trailers, it is crucial to follow these guidelines:

• Hydraulic System Control: Avoid adjusting the overflow pressure of the hydraulic system to prevent overloading.
• Stable Parking Surface: Park the vehicle on a solid and level surface to minimize the risk of uneven tire loading.
• Rear Box Plate Locking Mechanism: Adhere to the manufacturer’s guidelines for the rear box plate locking mechanism. Do not attempt to modify or bypass the system.
• Site Inspection: Conduct a thorough inspection of the unloading site to assess ground conditions and potential hazards.
• Rollover Prevention: In the event of a potential rollover, avoid panicking and do not switch the control valve to the car body lowering position.

By strictly adhering to these guidelines, operators can minimize the risk of accidents and ensure the safety of personnel and equipment.

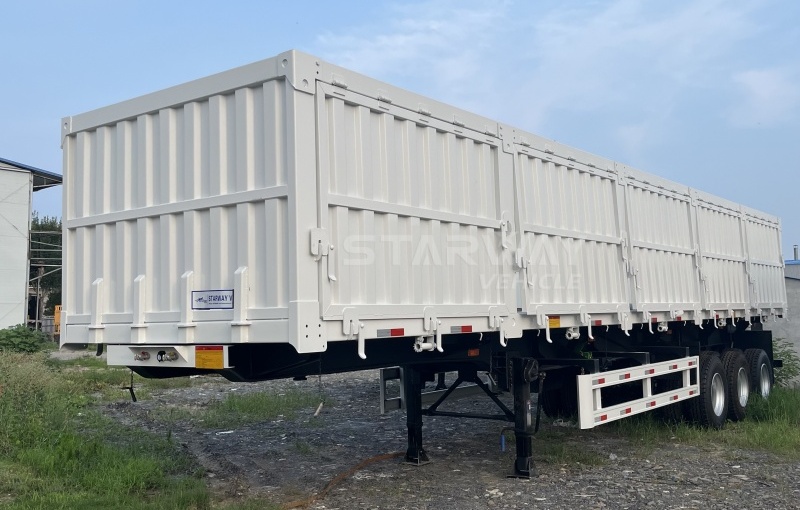

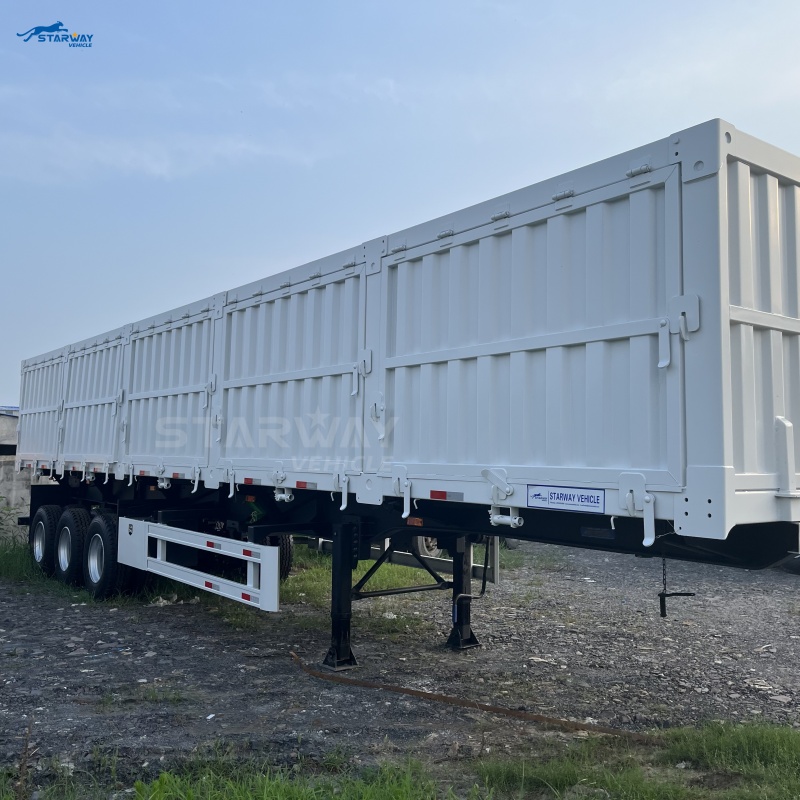

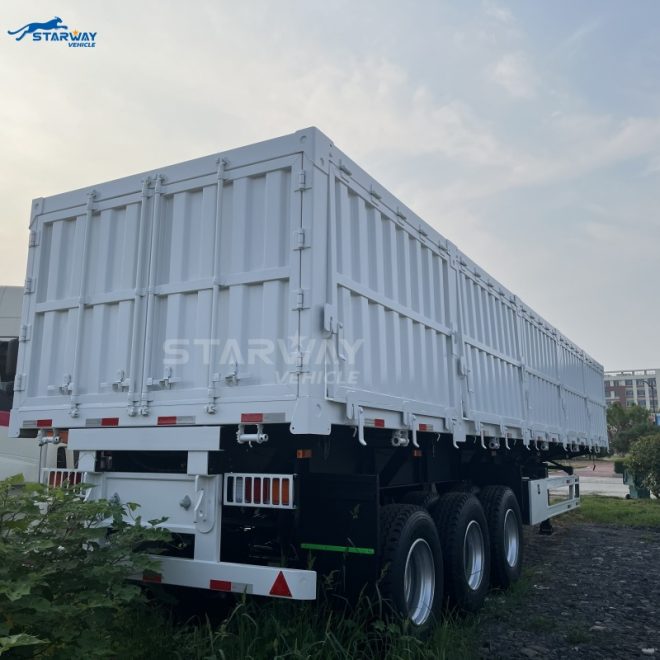

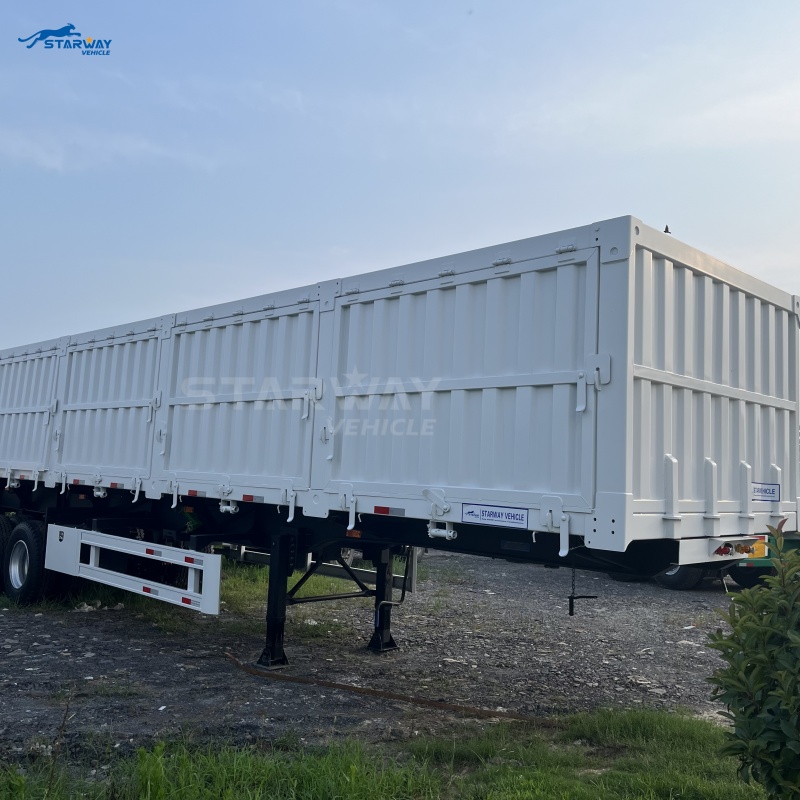

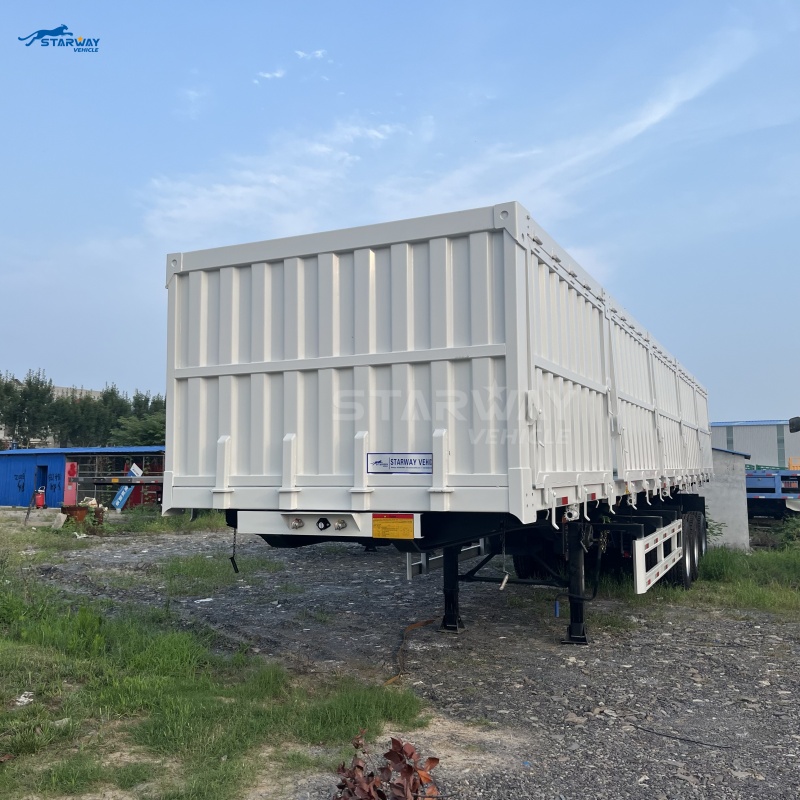

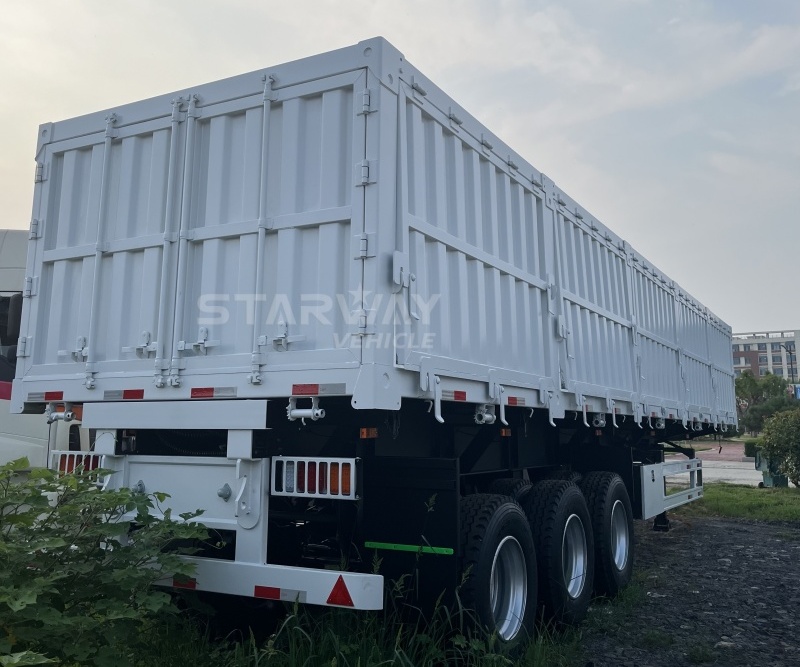

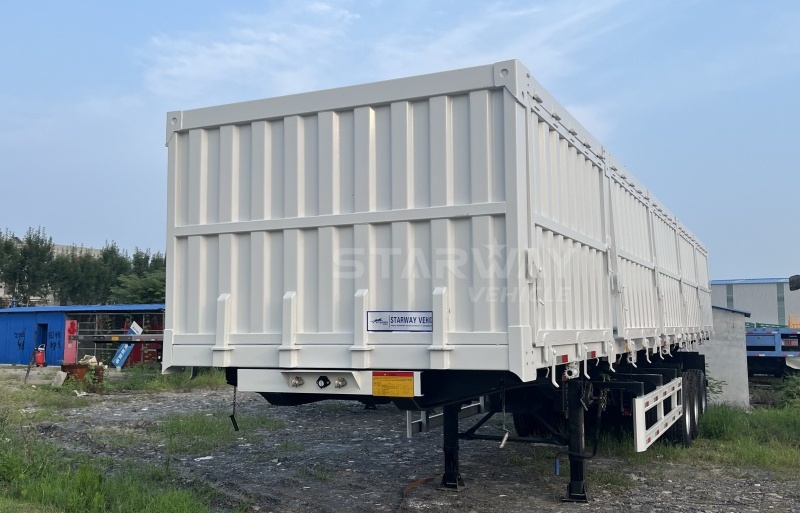

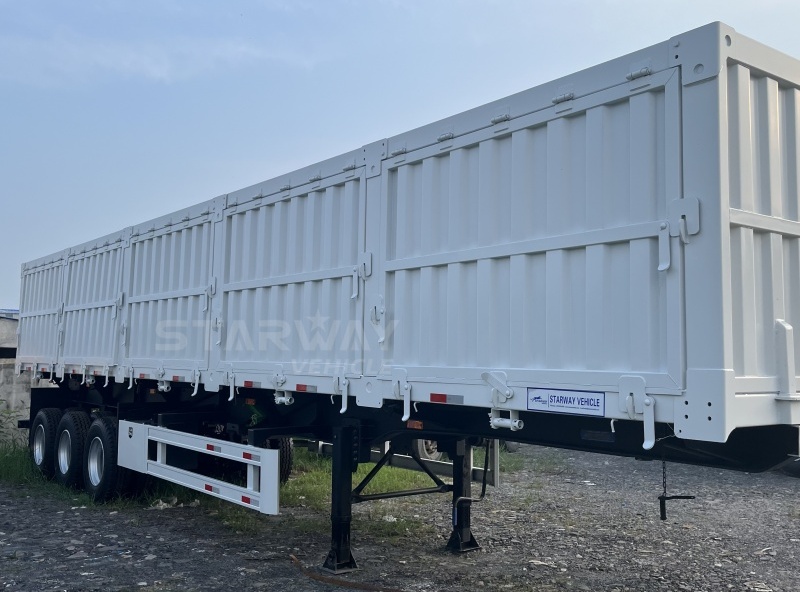

The specification of standard 3axles sidewall semi trailer :

Dimension :13000x2500x1580mm(Customer Requirement)

Sidewall Height :600mm

Main beam:Material: Q345B; “H” beam height: 500mm; Top/middle/bottom: 12/8/14(mm)

Through beam:#10 channel steel

Side beam :#16 channel steel

Loading capacity :60 T

Paint: Powder spraying and coating

Color:Per customer’s requirement

Axle:BPW/Fuwa/Starway/ 13 ton x 3

Tire: Triangle 12R22.5x 12 + one spare tyre

Rim:900*22.5 *13

Suspension:Mechanical suspension or air suspension(brand optional)

Leaf spring:Leaf spring 10pcs*90*13mm or air bag

Landing gear:JOST or other brand two-speed, landing gear 28T

Electrical System:24V 7-way socket; front marker lamp: white; side marker lamp: white & red; rear lamp: red; turning signal lamp: amber; wiring: electric cable protected by PVC conduit on main frame

Braking System :Dual line pneumatic brake, SAE hose and connector,with WABCO ABS

Accessories:Toolbox*1; spare tire carrier*2  ,  12 pcs container twist locking
