Starway 4axles sidewall semi-trailer: ideal for safe and flexible cargo transport ：

Sidewall semi-trailers are designed for businesses that need to transport a variety of cargo safely and efficiently. These trailers are ideal for transporting everything from construction materials and machinery to palletized cargo and other oversized or irregularly shaped cargo. The trailer’s vertical sidewalls provide added protection, keeping your cargo safe throughout its journey.
A key feature of the sidewall design is the ability to open and close the walls depending on the nature of the load. Walls are often hinged, making loading and unloading easier by allowing you to access the cargo from the side. This feature is especially useful when dealing with bulky items that need to be loaded or unloaded quickly and efficiently from different angles. Whether you’re hauling large construction equipment or precision machinery, sidewall semi-trailers offer flexibility and enhanced protection for your cargo.

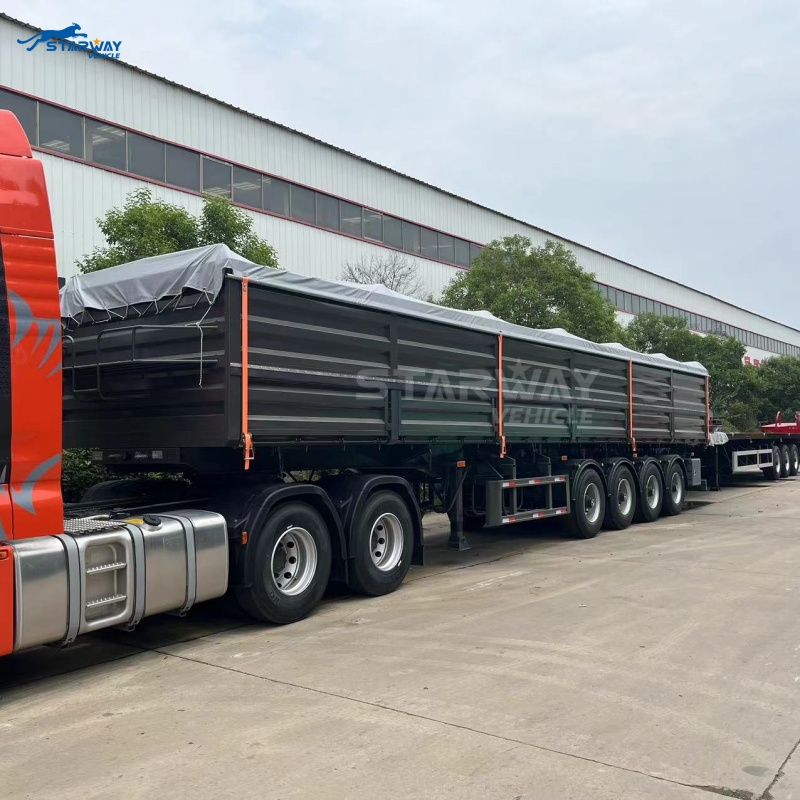

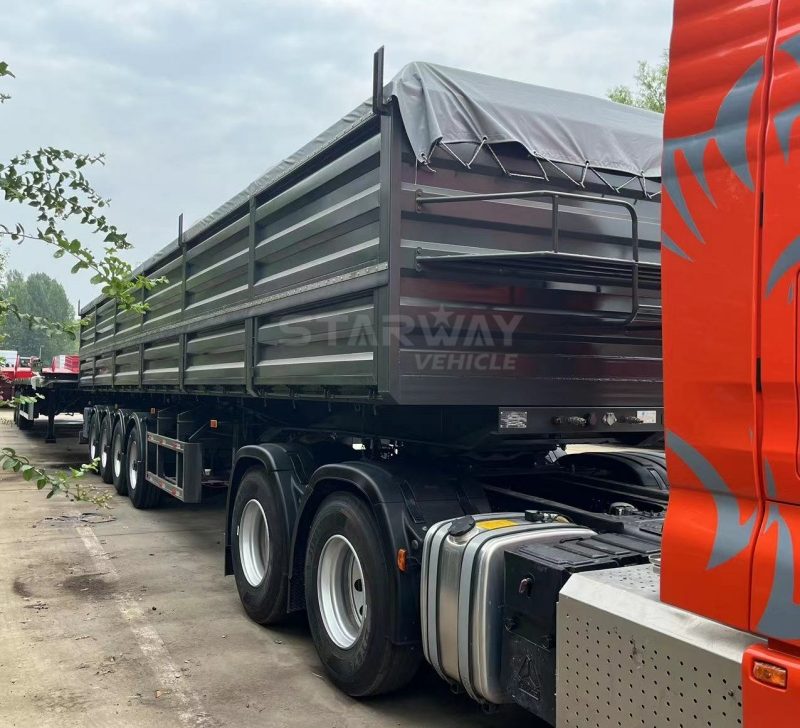

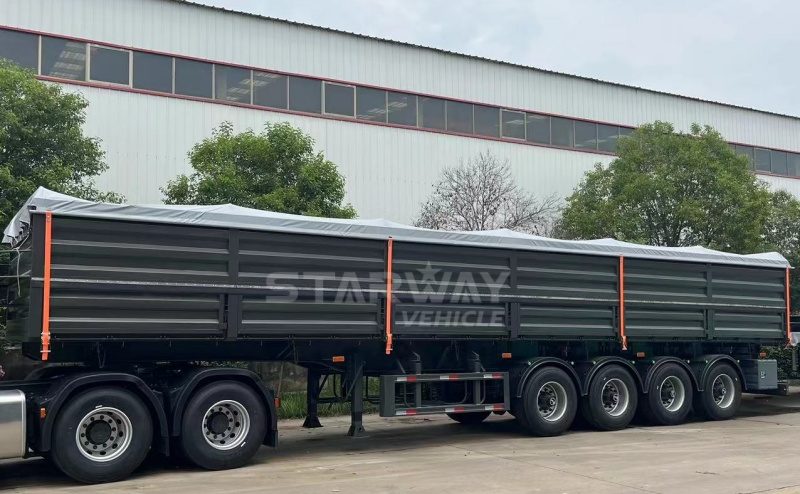

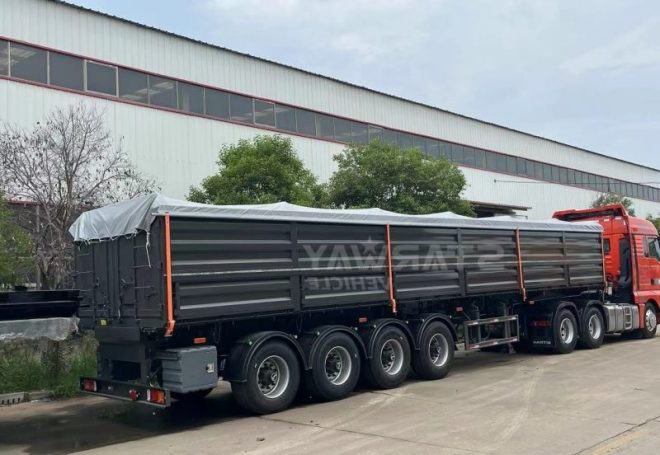

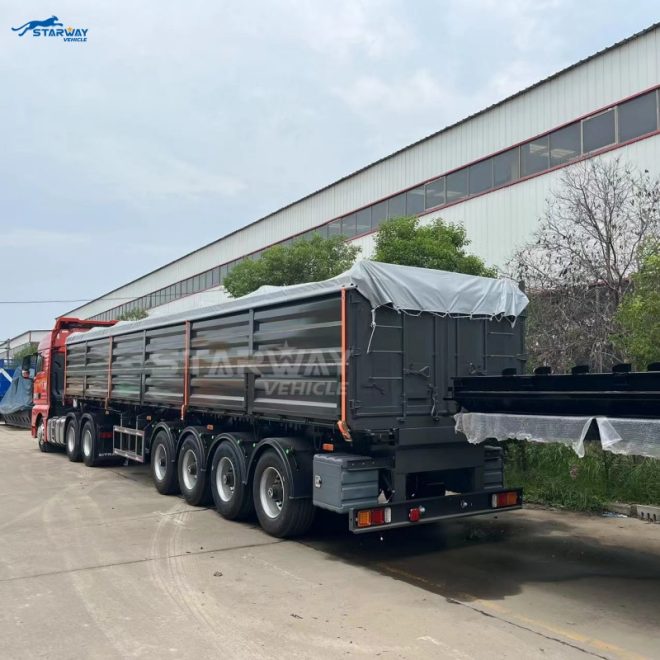

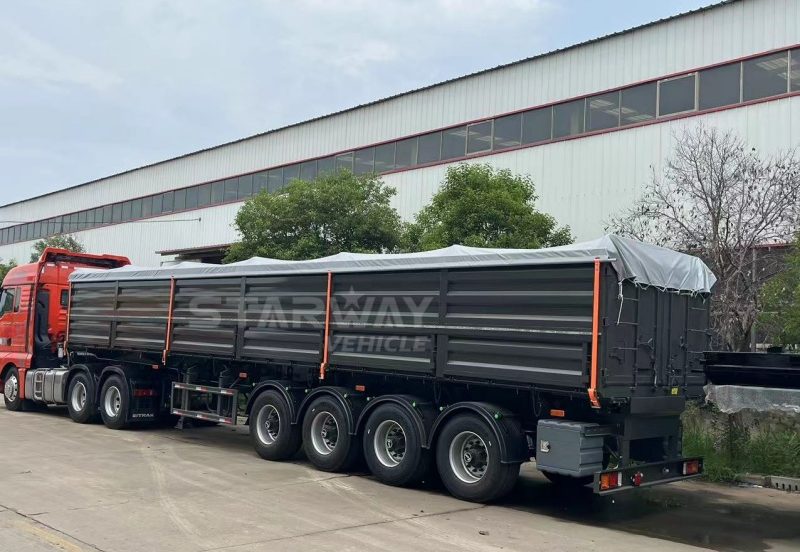

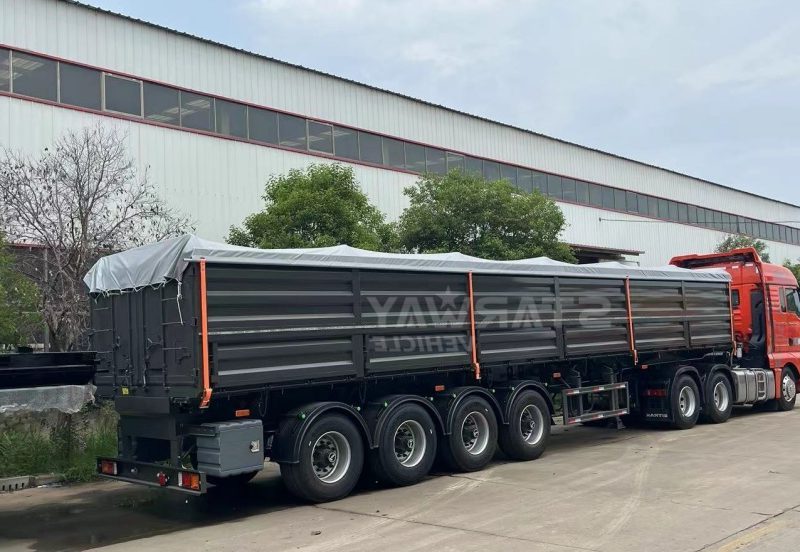

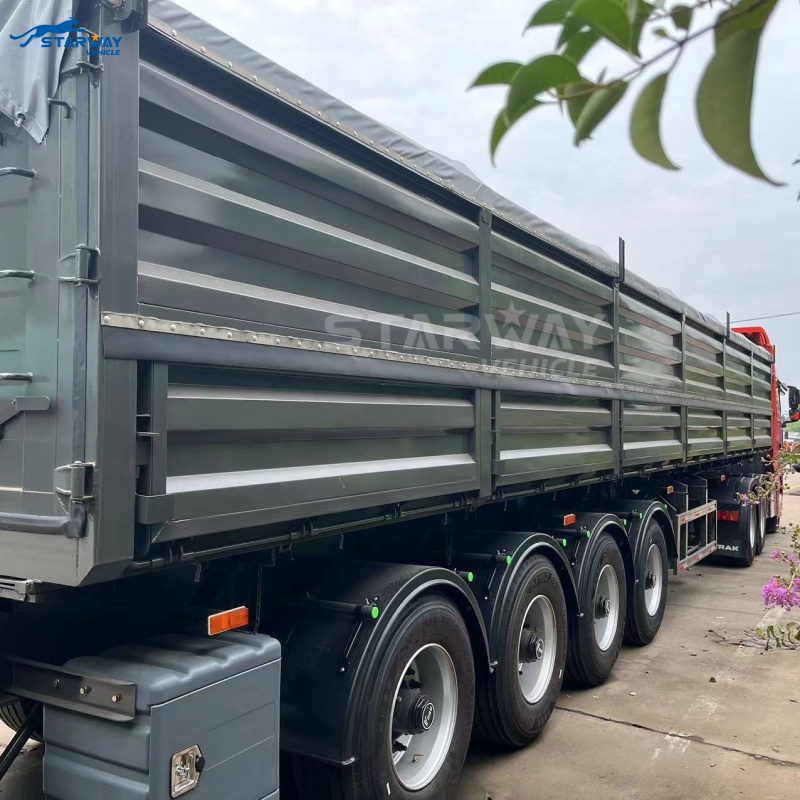

                                 4Axles Sidewall Semi Trailer On Sale

                                  4 Axles Sidewall Semi Trailer On Sale

                             4 Axles Sidewall Semi Trailer On Sale

The specification of standard 4axles sidewall semi trailer :

Dimension :13000x2500x1580mm(Customer Requirement)

Sidewall Height :600mm

Main beam:Material: Q345B; “H” beam height: 500mm; Top/middle/bottom: 12/8/14(mm)

Through beam:#10 channel steel

Side beam :#16 channel steel

Loading capacity :60 T

Paint: Powder spraying and coating

Color:Per customer’s requirement

Axle:BPW/Fuwa/Starway/ 13 ton x 4

Tire: Triangle 12R22.5x 12 + one spare tyre

Rim:900*22.5 *13

Suspension:Mechanical suspension or air suspension(brand optional)

Leaf spring:Leaf spring 10pcs*90*13mm or air bag

Landing gear:JOST or other brand two-speed, landing gear 28T

Electrical System:24V 7-way socket; front marker lamp: white; side marker lamp: white & red; rear lamp: red; turning signal lamp: amber; wiring: electric cable protected by PVC conduit on main frame

Braking System :Dual line pneumatic brake, SAE hose and connector,with WABCO ABS

Accessories:Toolbox*1; spare tire carrier*2  ,  12 pcs container twist locking
